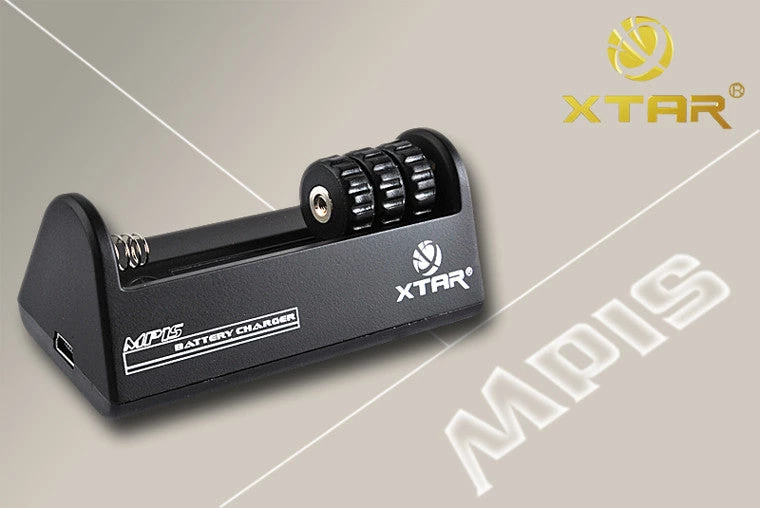

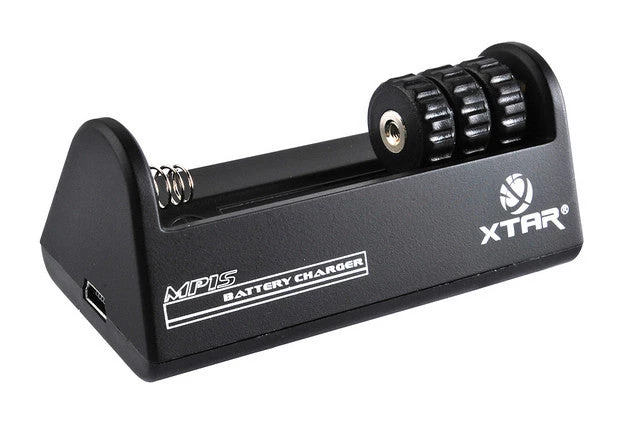

XTAR MP1S Intelligent USB 14650/17500/17670/18350/18650/18700 Battery Charger

FEATURES

• When use spacers Apply to 10440/14500/15270/16340/18350 3.7V Li-ion battery charging
• 0V activation function
• Standard USB charging interface. Solar panel(5.0V/0.5A) could be used as power supplier for MP1S.
• Algorithm charging system (CC/CV), real-time battery monitoring system
• IC temperature monitoring system
• High and low voltage separated charging system
• MP1S Charger adopts reverse-polarity protection circuit.
• Input: DC 5V 500mA .Solar panel(5.0V/0.5A) could be used as power supplier for XP1 with USB port.

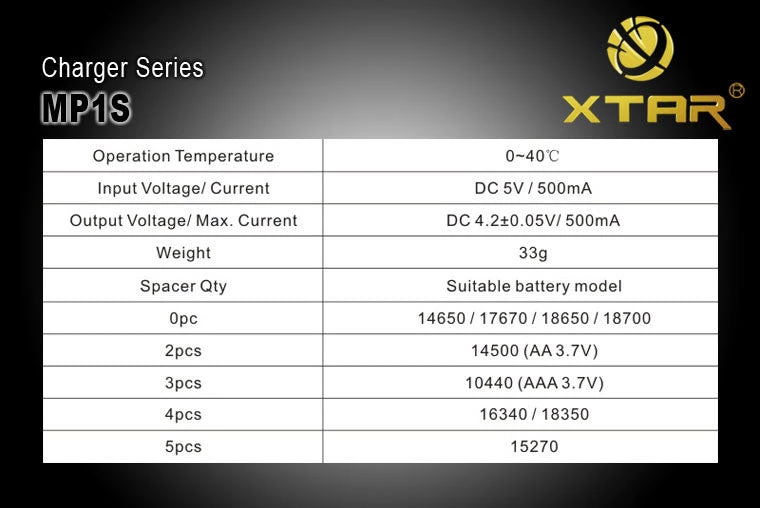

SPECIFICATIONS

• Output: DC 4.2V 500mA
• Constant charge current：500±10% mA
• Constant charge voltage：4.2±0.05 V
• Adaptor input: 110V~240V AC 50/60Hz
• Adaptor output: DC 5V 500mA
• Operation temperature: 0℃~40℃
• Car Adaptor output: DC 5V
• Size(mm): 84.0 length x 40.0 width x 35.0 height

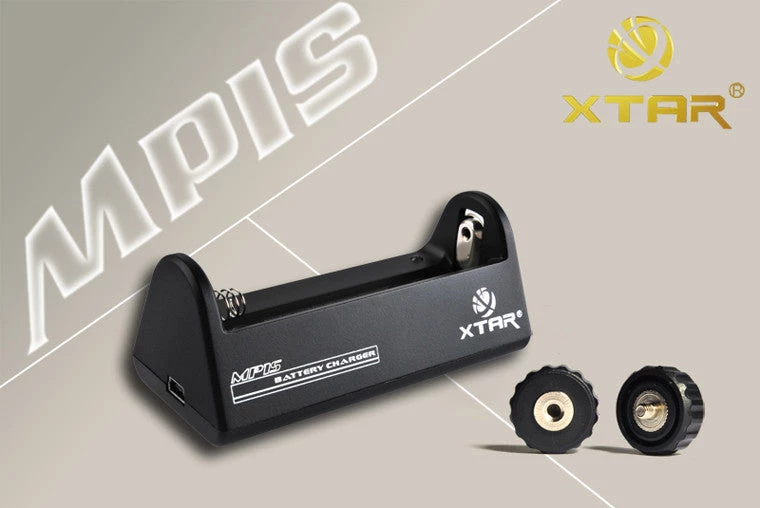

Spacer Qty Suitable battery model

• 0pc 14650 / 17670 / 18650 / 18700
• 2pcs 14500 （AA 3.7V）
• 3pcs 10440 (AAA 3.7V)
• 4pcs 16340 / 18350
• 5pcs above 15270

Notice:
1. Charge only 3.7V Li-ion batteries!
2. Indoor Use Only, keep water and moisture away from Unit!.
3. Disassembly and modification are strictly prohibited!
4. Short circuit is strictly prohibited
