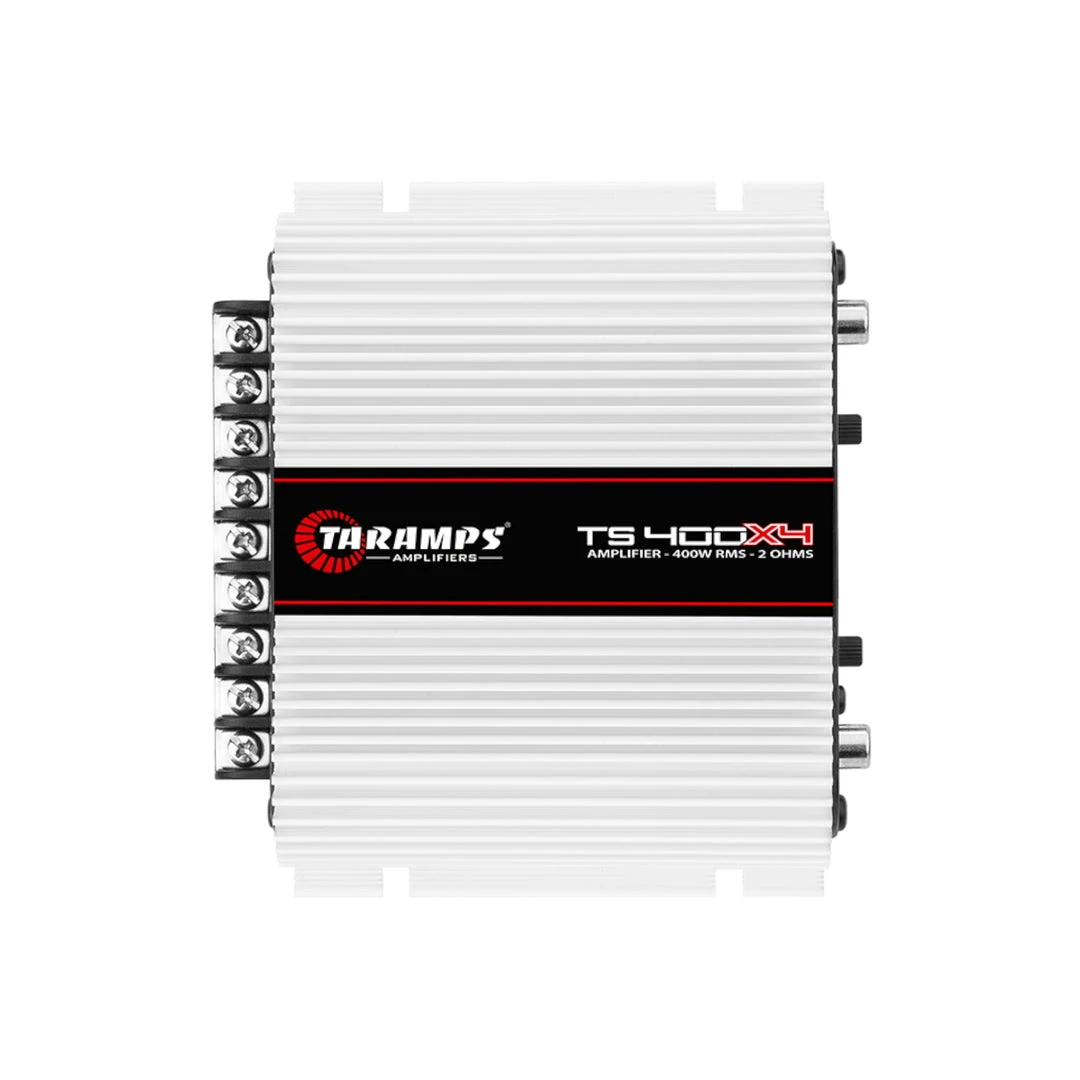

Taramp’s TS 400×4 400W 4-Channel Class D Car Amplifier Outdoor Recreation

The TS Series amps by Taramp’s are some of the best-seller amps in the world, with a solid reputation for delivering high performance audio with power and zero distortion, in an extremely compact size.

Technical Specs:

• Number of Channels: 04
• Maximum Power:
• @ 13.8 VDC – 2 OHMS – 400 W RMS (4 x 100W RMS)
• @ 13.8 VDC-4 OHMS – 252 W RMS (4 x 63W RMS)
• Bridged @ 13.8 VDC – 4 OHMS – 400W RMS (2 x 200W RMS)
• Input Sensitivity: 200mV (Vol=Max)
• Signal to Noise Ratio: > 90dB
• Frequency Response: (Full Range): 18Hz to 30kHz (-1dB)
• High Pass Crossover (HPF): 90Hz (-12dB / 8th)
• Low Pass Crossover (LPF): 90Hz (-12dB / 8th)
• Input Impedance: 22K OHMS
• Thermal Protection System and Short Output
• Minimum Supply Voltage: 8 VDC
• Maximum Supply Voltage: 16 VDC
• Standby Power: 0.8 Amp.
• Maximum Musical Power: @ 13.8VDC: 16.5 Amp.
• Maximum Consumption in Sine Signal: (1kHz) 13.8VDC: 33 Amp.
• Dimensions (WxDxH): 138 x 49 x 121mm
• Weight: 0.6kg
