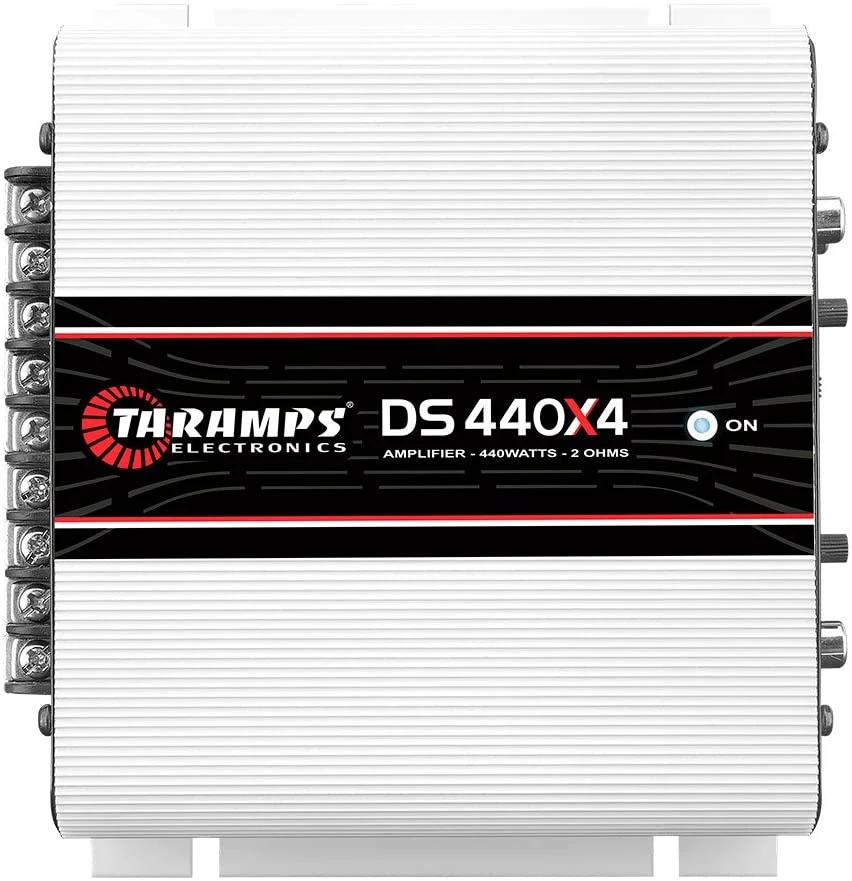

Taramp’s Electronics & Cameras Taramps DS 440X4 2 Ohms 4 Channels 440 Watts Compact Amplifier

The DS Series amps use Taramp’s newest cutting edge technology. They are an evolution of the best-selling TS Series. The DS440X4 fits on the palm of your hand and delivers stunning power in 4 channels.

Technical Specs:

• Number of Channels: 4
• Maximum Power:
• @ 12.6 VDC – 2 OHMS: 440W RMS (4 x 110W RMS)
• @ 12.6 VDC – 4 OHMS: 276W RMS (4 x 69W RMS)
• 2 Bridged Channels: @ 12.6 VDC – 4 OHMS: 440W RMS (2 x 220W RMS)
• Input Sensitivity: 250mV
• Signal Noise/Ratio: >89dB
• Frequency Response: 8Hz ~ 26KHz(-3dB)
• Crossover High Pass (HPF): 90Hz(-12dB/8ª) Fixed
• Crossover Low Pass (LPF): 90Hz(-12dB/8ª) Fixed
• Input Impedance: 18K OHMS
• Output Impedance: 2 OHMS
• Protection System: Short output
• Minimum Supply Voltage: 8 VDC
• Maximum Supply Voltage: 16 VDC
• Idle Consumption: 0.8 A
• Maximum Musical Power: @12,6 VDC – 23,5A
• Maximum Sine Signal Consumption: 47A
• Dimensions (WxHxD): 160 x 44 x 145mm
• Weight: 0,60Kg
