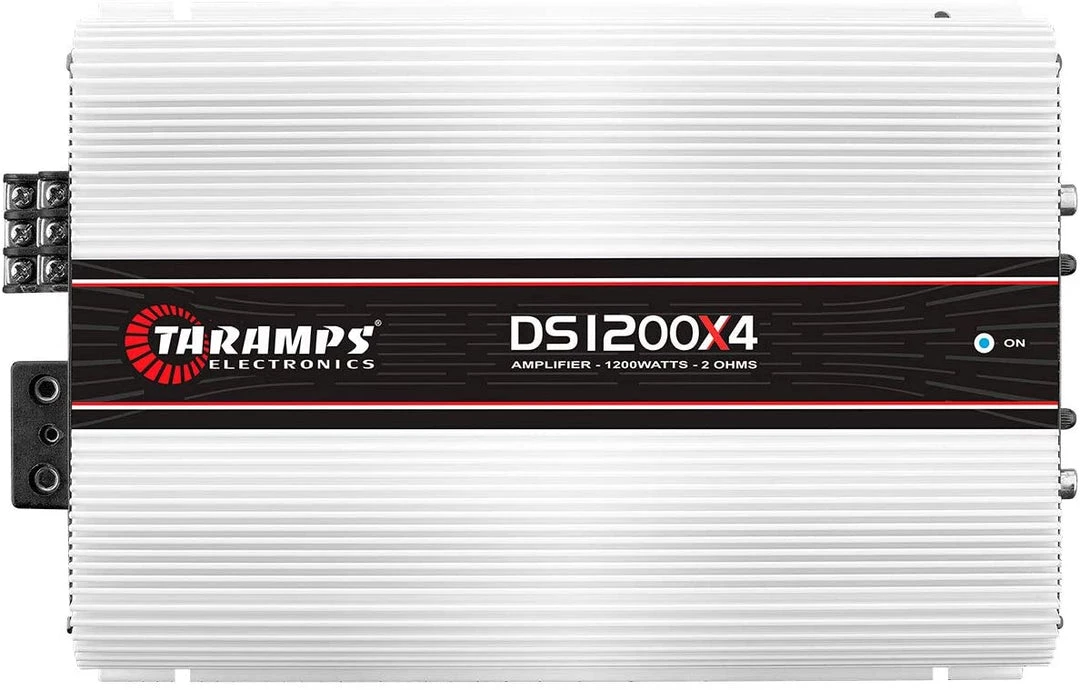

Taramp’s DS 1200×4 1200 Watts, 4 Channels Car Amplifier

The DS Series amps use Taramp’s newest cutting-edge technology. They are an evolution of the best-selling TS Series.

Technical Specs

• Number of Channels: 4
• Minimum Output Impedance: 2 Ohms
• RMS Power @ 12.6 VDC – 2 Ohms: 1200W RMS (4x300W RMS)
• RMS Power @ 12.6 VDC – 4 Ohms: 768W RMS (4x192W RMS)
• Input Sensitivity: 250mV
• Signal-to-Noise Ratio: > 80dB
• Frequency Response: 9Hz ~ 27KHz (-3dB)

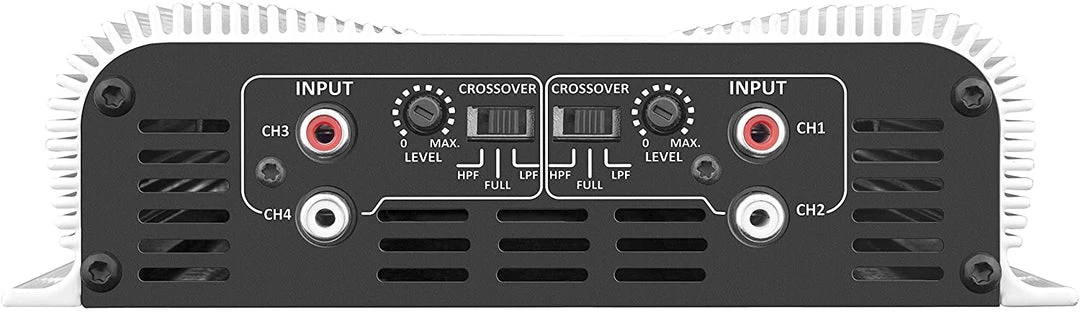

• Crossover:
• H.P.F (High Pass Filter): 90Hz (-12dB / 8th) Fixed
• L.P.F (Low Pass Filter): 90Hz (-12dB / 8th) Fixed
• Input Impedance: 18K Ohms
• Protection System: Output Overload
• Minimum Power Supply Voltage: 9 VDC
• Maximum Power Supply Voltage: 16 VDC
• Consumption at rest: 1.8A
• Musical Consumption: 67.5A
• Rated Power Consumption: 135A
• Dimensions (WxHxD): 182 x 52 x 281mm
• Weight: 2.1Kg
