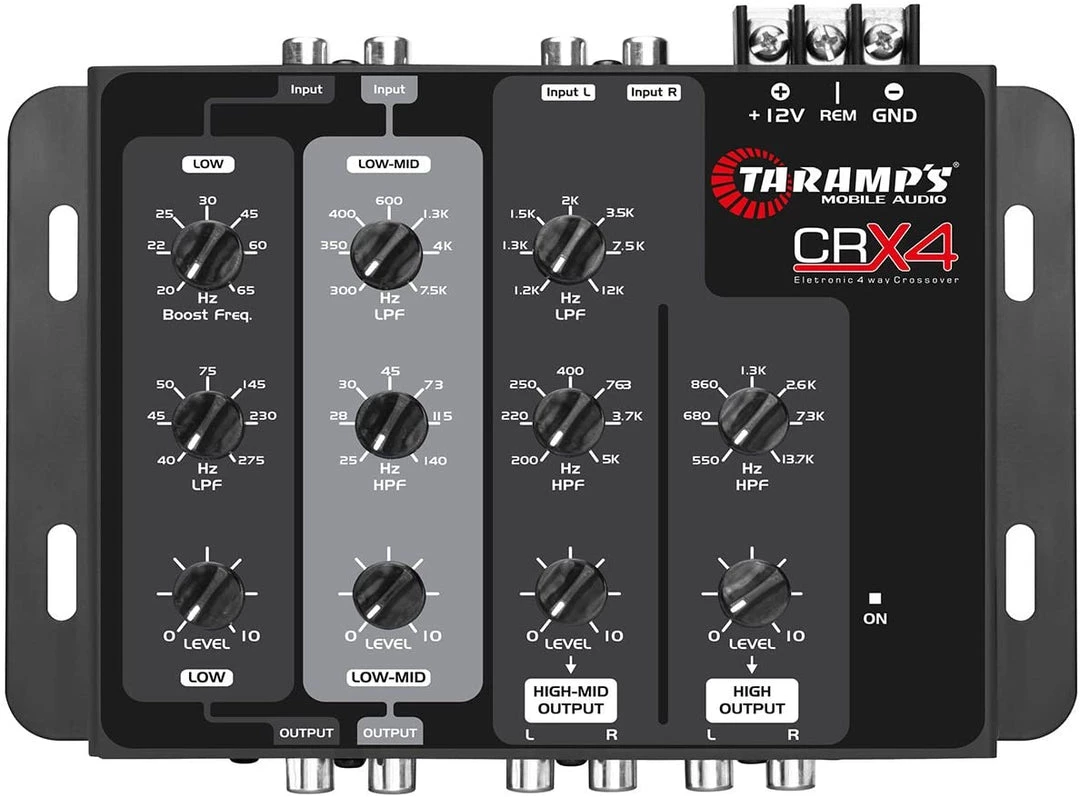

Taramp’s CRX 4 4 Way Compact Electronic Crossover

The CRX4 Compact crossover is designed for the audio enthusiast with competition-level sound in mind. It delivers enhanced audio with greater quality, optimizing output with customizable sound adjustments.

Technical Specs

• 12dB / 8th 4-way electronic crossover
• Harmonic distortion (THD): less than 0.01%
• Maximum input level: 8 volts
• Maximum output level: 8 volts
• Separation between channels: greater than 80dB
• Working voltage: 10 to 15.5V DC
• Input impedance: 27K Ohms
• Output impedance: 470 Ohms
• Crosstalk (separation between channels):> ​​80dB
• Nominal consumption: 380 mA
• Power supply: with DC-DC converter switched
• Electronic protection: reversal of polarity
• Recommended wiring gauge is 1.5mm² for positive / negative wires, and 0.75mm² for remote wire
• Width: 190 mm
• Height: 145 mm
• Depth: 40 mm

Via Low (subwoofers)

• LPF filter: adjustable from 40Hz to 275Hz with 12dB / 8th
• BassBoost: adjustable from 20 to 65Hz, fixed at + 6dB

Via Mid-Low (woofers or midbass)

• LPF filter: adjustable from 300 to 7.500Hz with 12dB / 8ª
• HPF filter: adjustable from 25 to 140Hz with 12dB / 8ª

Via Mid-High (drivers)

• LPF filter: adjustable from 1,200 to 12,000Hz with 12dB / 8ª
• HPF filter: adjustable from 200 to 4.600Hz with 12dB / 8ª

Via High (Super tweeter)

• HPF filter: adjustable from 550 to 12,000Hz with 12dB / 8th
