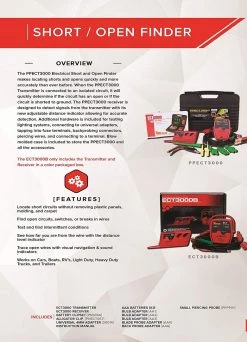

Power Probe PPECT3000 Circuit Tracer & Short Finder, 12-24 Volt Systems

The PPECT3000 allows you to trace short circuits with a directional indication, trace short circuits with distance indication, trace open circuits with LED indication and work on 12-24 volt systems.

• Trace Out a Short Circuit to Chassis Ground
• Tracing Out a Battery Drain or Current Draw
• Isolate your Circuit
• Verify the Short Circuit to Ground
• Verify an Open Circuit
• Short Circuit inside a wire harness
• Reception Distance from 1 inch to 8 inches
• Tracing Circuits that are shielded (Plastic Panels, Pillars, and Carpet)
• Shut off time is now 10 mins

SPECIFICATIONS

• Transmitter:
• Min Operating Voltage 8 VDC
• Max Operating Voltage 48 VDC
• Working Current: 200mA
• Working Frequency: 4KHz
• Max Operating Relative humidity: 80% ( Non-condensation)
• Max Storage Relative humidity: 80 % (Non-condensation)
• Receiver:
• Power Supply: 2 x 1.5V AAA
• Working Current: When not signal be detected <15mA
• Power Consumption when power off:<10uA
• Max Operating Temp: 50°C
• Max Storage Temp: 70° C
• Max Operating Relative humidity: 80% (Non-condensation)
• Max Storage Relative humidity: 80% (Non-condensation)

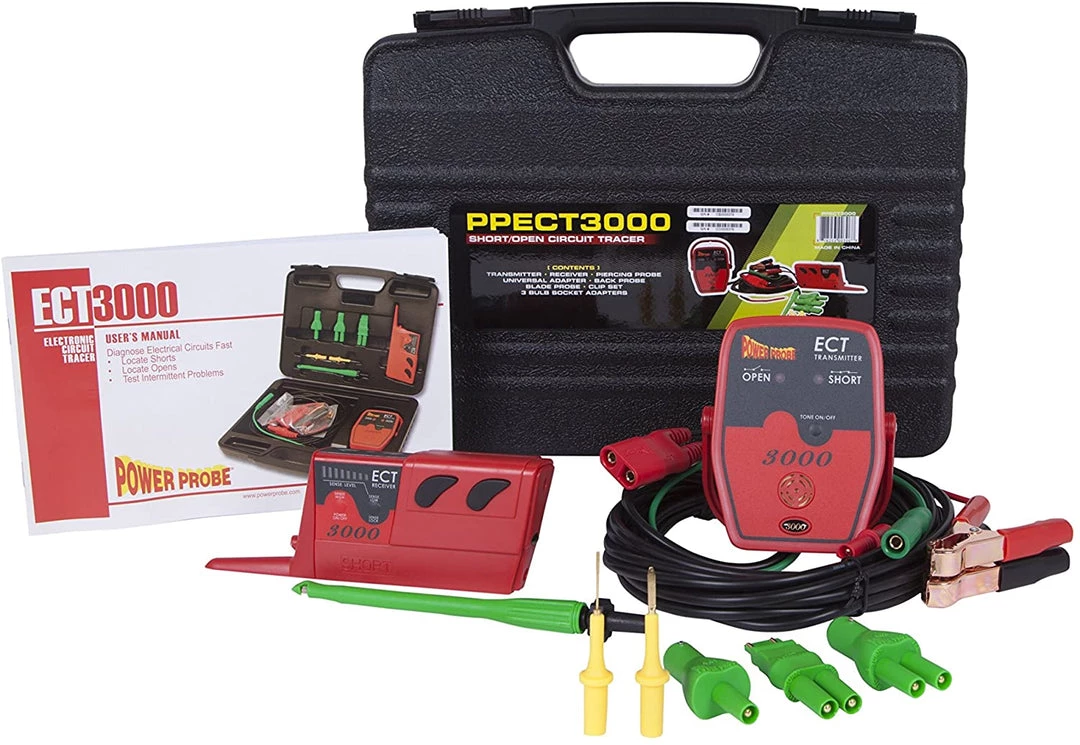

The ECT3000 Kit Includes:

• (3) light bulb socket adapters for testing lighting systems
• (1) universal adapter
• (1) blade probe adapter for tapping into fuse terminals
• (1) back probe adapter for back probing connectors
• (1) piercing probe
• (1) lead with an alligator clip for connecting to a wire or terminal
• (1) blow molded case
• (2) AAA Batteries
