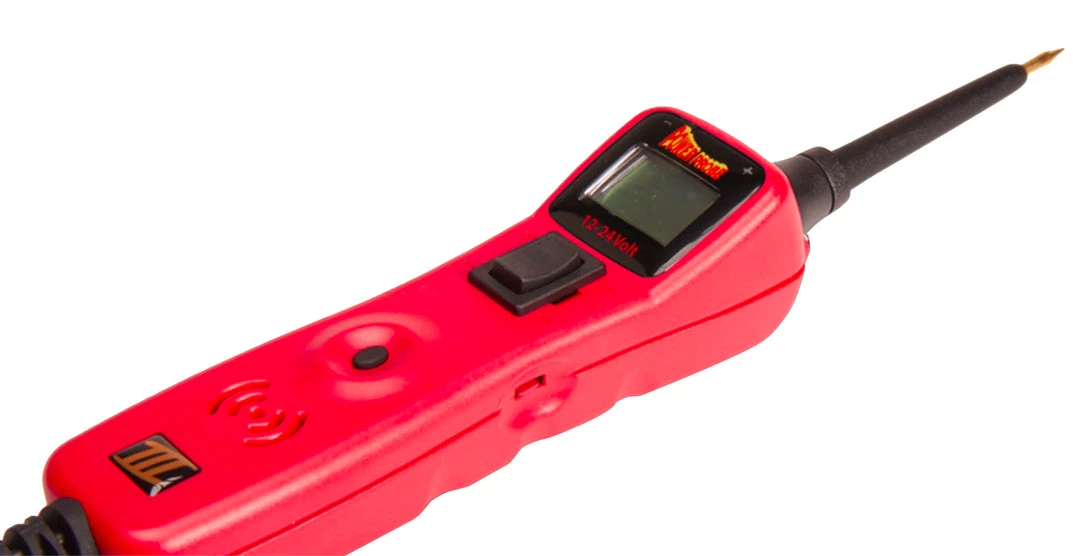

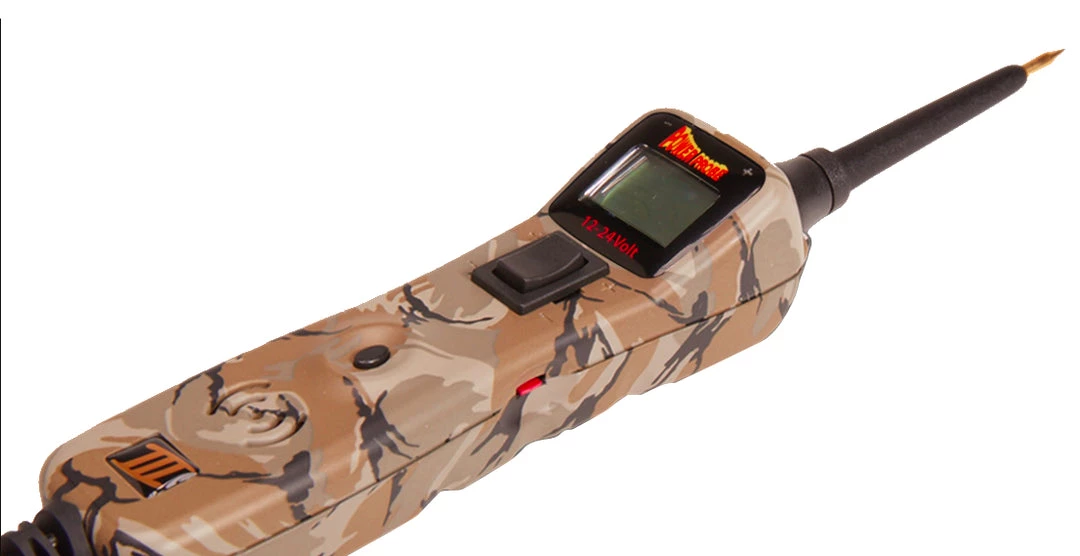

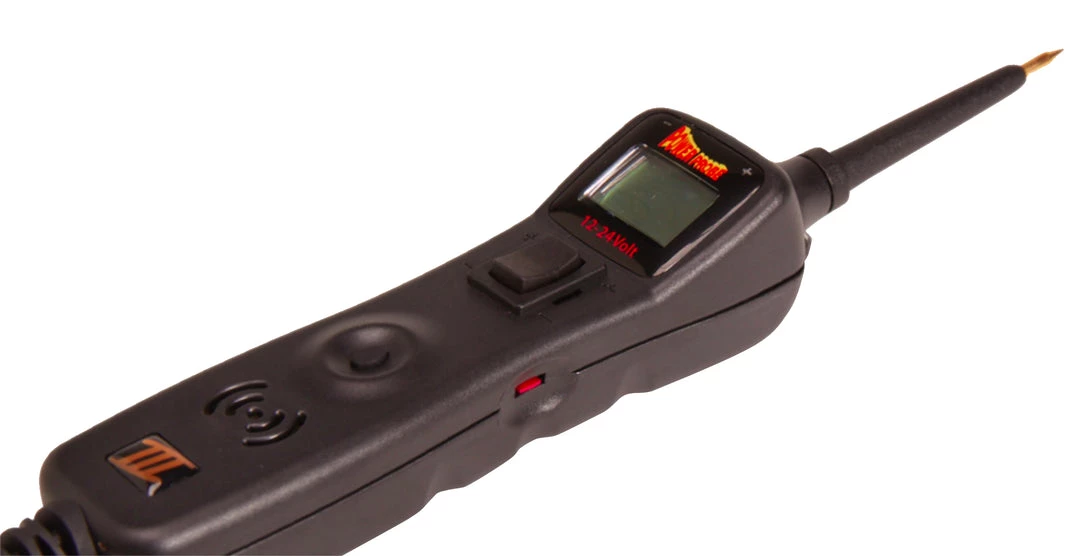

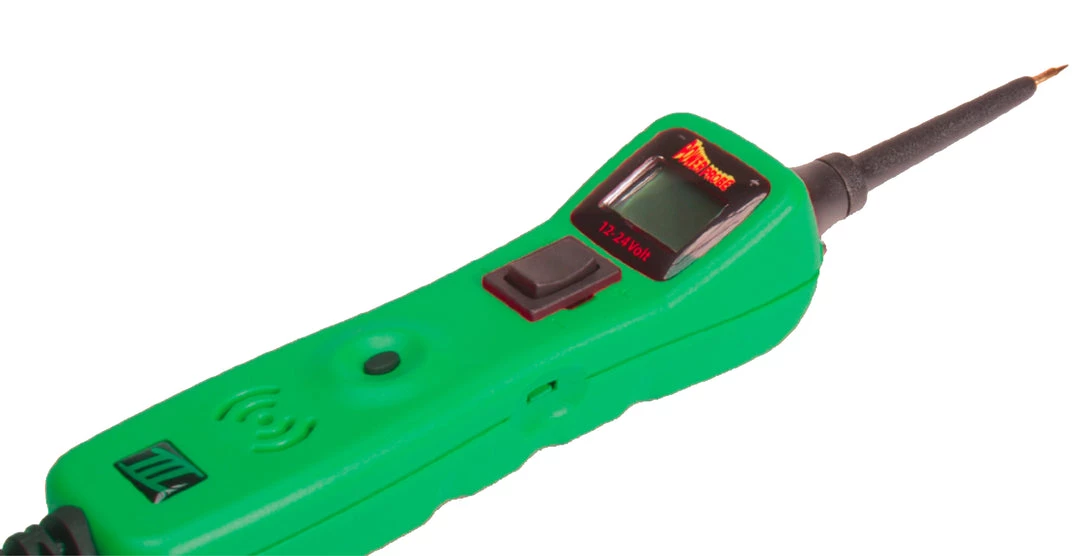

Power Probe III Kit, Digital Voltmeter With Case & Accessories

The original Power Probe 3 uses a 20ft cable which attaches to the vehicle’s battery, allowing the user to perform an electrical test anywhere in, or around the vehicle. The PP3 is a Voltmeter and Continuity Tester, with Audible & Visual indicators along with two LED headlights to light up your work area. This circuit tester also supplies Battery Voltage or Ground to activate components. This powerful time-saver tool is perfect for every level of technician.

The Power Probe 3 is a Digital Voltmeter designed to work on 12-24 Volt sources, with the ability to apply Power and Ground. Using an Auxiliary Ground cable, the user can simultaneously supply Battery Voltage, and ground to test components or to simply test for continuity. The PP3 is protected by an 8 Amp Circuit Breaker.

• Voltage & Polarity testing
• Continuity testing
• Activating components out of the vehicle’s electrical system
• Activating electrical components in the Vehicle
• Activating electrical components with ground
• Testing trailer lights and connections
• Checking for bad ground contacts
• Red/Green Indicator & Audio Tone

SPECIFICATIONS

• DC 0 to +70V +1 Digit
• P-P 0 to +70V
  The frequency response of tone pass through
• 10Hz to greater than 10 kHz
  PP Display
• 15 Hz Square Wave
• 35 Hz Sine Wave
  Power Probe Mode – Continuity to ground
• First level – Display is enabled less than 20 K Ω
• The second level – Green LED is enabled less than 600 Ω
  – & +Peak Detector Response
• Single event capture less than 200ms pulse width
• Repetitive events less than 1ms pulse width
  Peak to Peak Mode
• 0 to + 70 + 1 Digit
• 4Hz to over 500kHz Square Wave input
• 4Hz to over 250kHz Sine Wave input
• The threshold for PPAC/Audible passthrough
• Circuit Breaker 8 amp thermal response – Manual reset

The PP319 Kit includes:

• Power Probe 3
• 20ft Extension Lead for a total of 40ft (Perfect for working on large trucks or trailers)
• Cigarette Lighter Adapter
• Battery Clip-Set (for connecting to vehicle battery)
• Convenient Carrying Case
