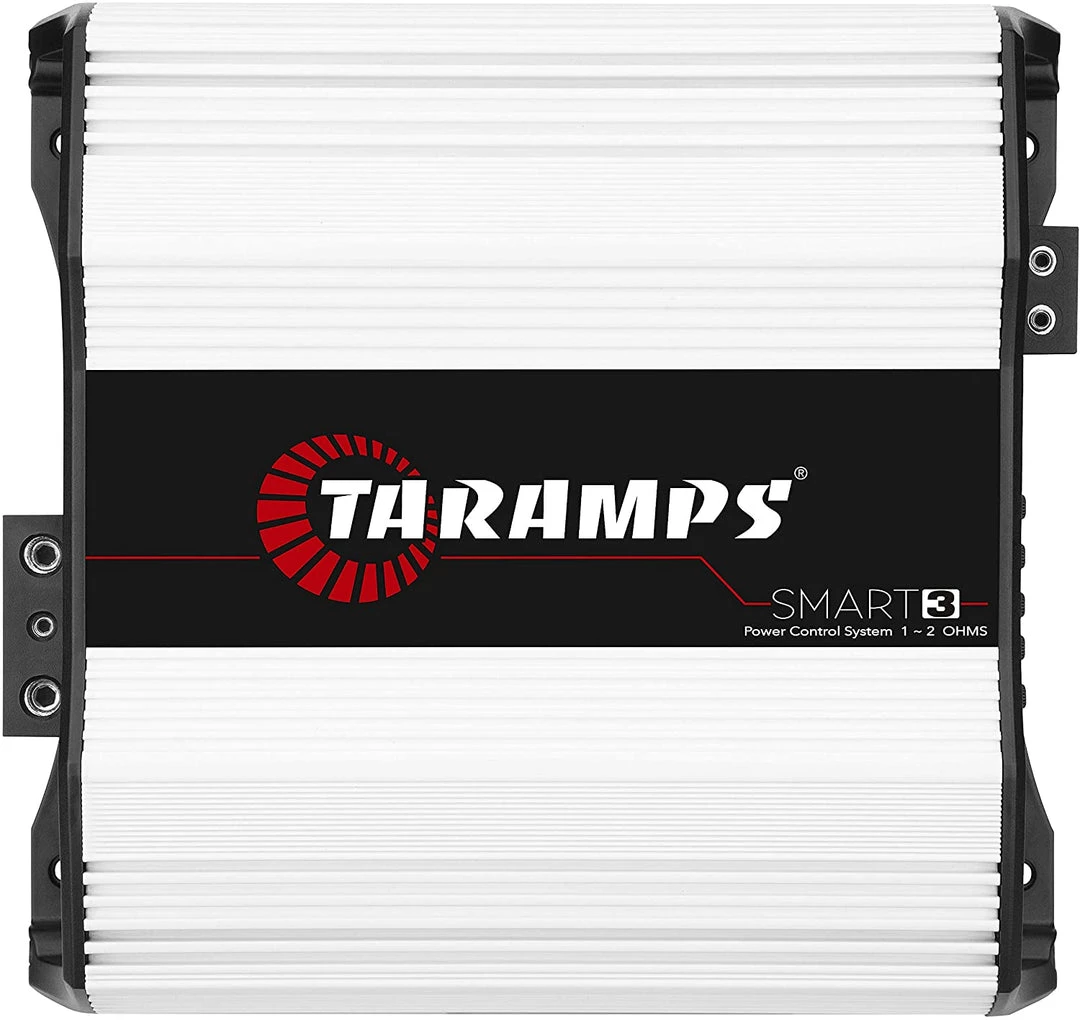

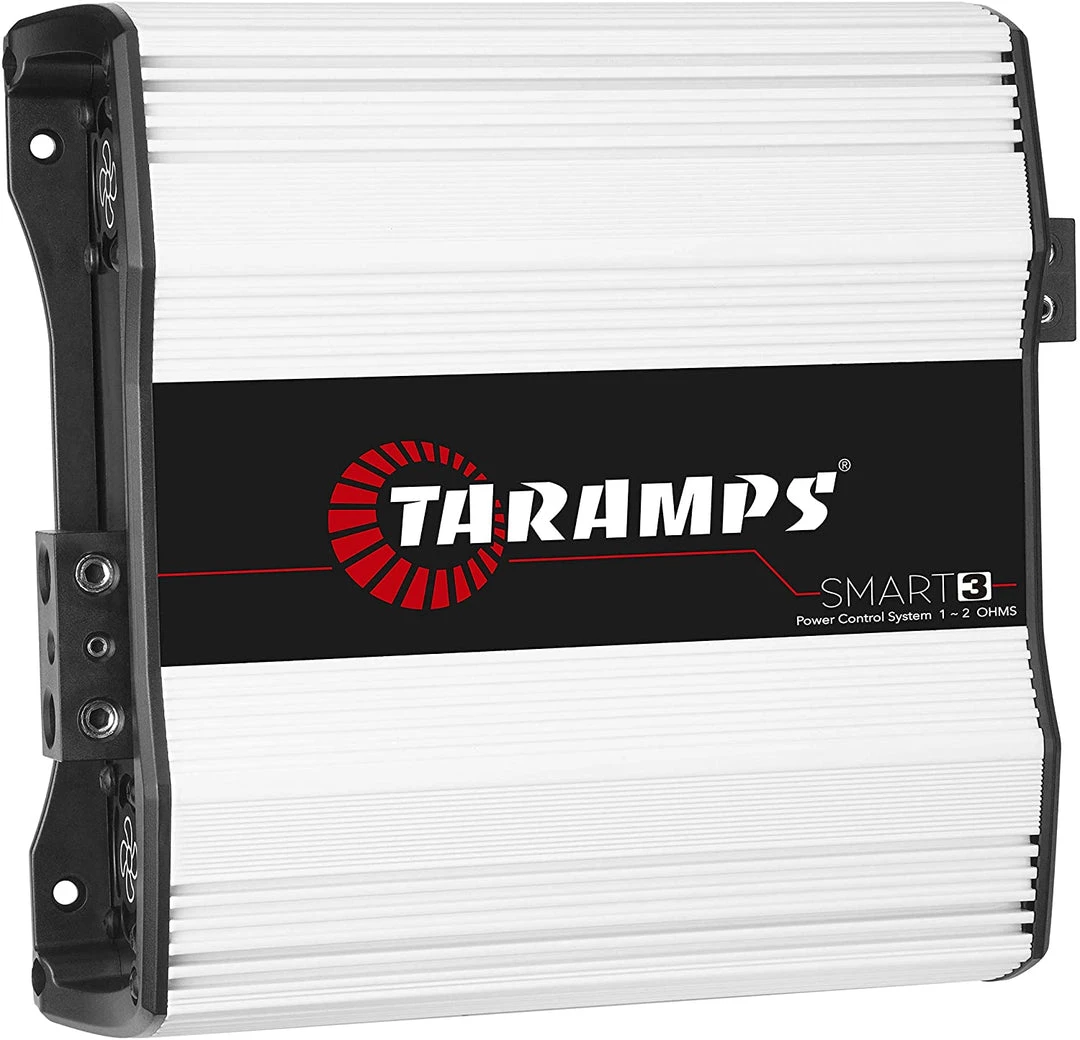

Electronics & Cameras Taramp’s Smart 3 3000w Power Control System

Taramp’s Smart 3 amplifier uses their latest technology to deliver 3000 Watts of competition level sound at 1 or 2 ohms. It is designed to provide high performance with optimal power and sound quality aimed at the international music market.

Technical Specs:

• Number Of Channels: 01
• Maximum Power:
• @ 12.6 VDC – 1 OHM: 3000W RMS
• @ 12.6 VDC – 2 OHMS: 3000W RMS
• @ 12.6 VDC – 4 OHMS: 2000W RMS
• Input Sensitivity: 0.22V ~ 4V
• Signal to Noise Ratio: >90dB
• Frequency Response: 10Hz ~ 10KHz (-3dB)
• Crossover High Pass (Hpf): 10Hz ~ 90Hz (-12dB/8ª) Variable
• Crossover Low Pass (Lpf): 90Hz ~ 10KHz (-12dB/8ª) Variable
• Bass Boost: Freq.: 35Hz ~ 55Hz, Boost: 0 ~ +10dB
• Efficiency: 79%
• Input Impedance: 10K Ohms
• Protection System: Output short-circuit, low/high supply voltage and thermal protection
• Mininum Supply Voltage: 9 VDC
• Maximum Power Rating: 16 VDC
• Consumption At Rest: 2.40 A
• Musical Maximum Consumption: 150 A
• Maximum Consumption in Sinusoidal Signal: 300 A
• Dimensions (WxDxH): 8.98″ x 2.76″ x 9.37″
• Weight: 5.72 lb
