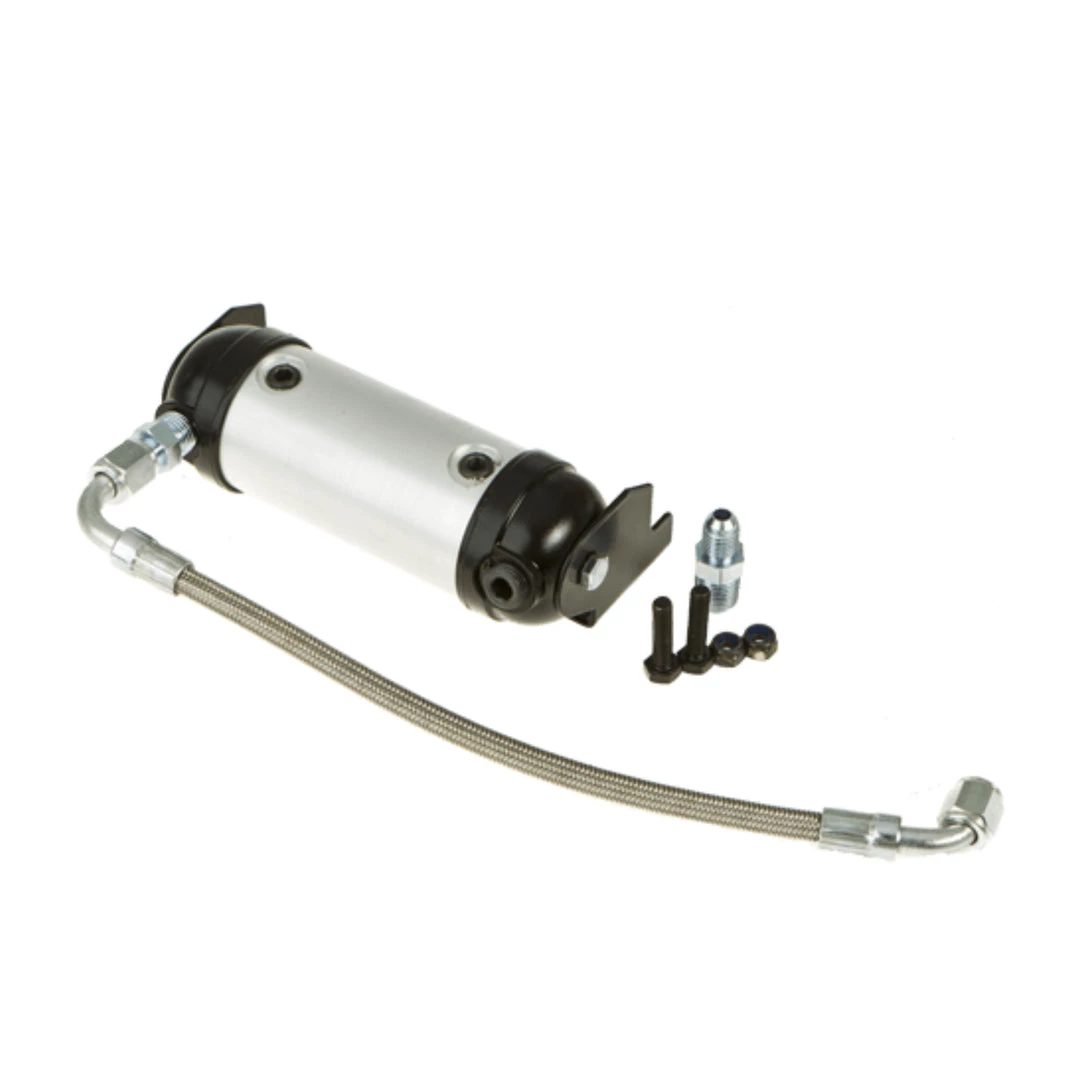

ARB Air Compressor Manifold Kit Outdoor Recreation

Part No: 171503

Designed to work seamlessly with ARB’s maximum performance on-board compressors, the Air Locker Manifold Kit enables easy installation of up to two Air Locker solenoids to an air source such as a compressor or regular gas bottle. With a working pressure of 150Psi (1030kPa), the manifold kit incorporates multiple ports for use with ARB’s Pump Up kit, as well as mounting brackets, and a Teflon stainless steel braided hose designed to cool air supply for tire inflation.

Kit Includes:

• Manifold body with mounting bracket
• 2 x 1/8″ BSPP ports for installation of up to 2 x Air Locker solenoids
• 2 x 1/4″ NPT ports, one to be used as an input and the second could be used for installation of a pump up kit (ARB 171302)
• 1 x high temperature resistant Teflon stainless steel braided hose with heavy duty JIC4 fittings
• 2 x JIC4 – 1/4″ NPT nipples to connect the included hose to the compressor outlet and manifold kit input
• 2 x M6 hex head bolt and nylon lock-nuts for securing the manifold kit
